EZ Skid™ System
EZ Skid™ System

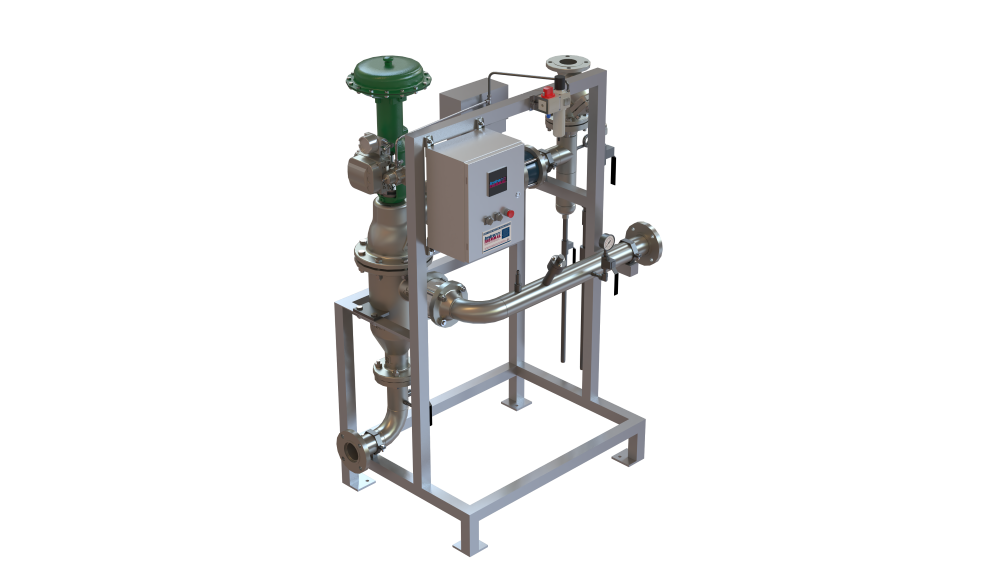

The EZ Skid™ is an integrated, compact pre-engineered hot water set heating system, utilizing the direct steam injection EZ Heater®. All components needed for liquid heating applications are included – simply connect to plant utilities: steam, water, air and power.
Pressure & Temperature
- Max pressure – 195 PSIG / 13.4 Barg
- Max temperature – 400°F / 205°C
Connection Types
- H310 – H320: NPT
- H330 – H360: Flanged, ANSI Class 150#
- EZ Heater bodies are cast 316 Stainless Steel, with 316L internals.
- Water piping is 304 Stainless steel, sch 40. Steam piping is carbon steel, sch.40.
- The frame is welded tubing, 304 Stainless steel.
- Steam system components are carbon steel, with stainless steel internals as required for performance.
- Some components utilize carbon steel bodies with stainless steel trim (larger check valves, automatic on/off steam valves, pumps, etc).
- All-in-one heating system, known as a hot water set, can be easily implemented into your current processes, including heater, skid system, controls and more.
- Proprietary SMART Controller is designed to respond to a wide range of flow conditions with a high degree of accuracy.
- Available in 5 standard sizes with ratings to 1,350 GPM [306 m(3) /hr]
- Highly compact to meet space constraints.
- Pre-designed and partially stocked for short lead time.
- Plug-and-play style and custom designs available
Steam & Water
Industries
- Beverage
- Dairy (Separation & Pasteurization)
- Food
- Wastewater
- Chemical
- Pharmaceuticals (Personal Care & Bio Tech
- Energy & Utilities (Oil & Gas)
- Meat & Rendering
- Distilling & Brewing
- Starch to Sugar
- Paper & Pulp
- Renewable Fuel (Ethanol)
Other
- Mining (Processing Facilities)
- Metal
- Automotive
