EZ Heater®
EZ Heater®

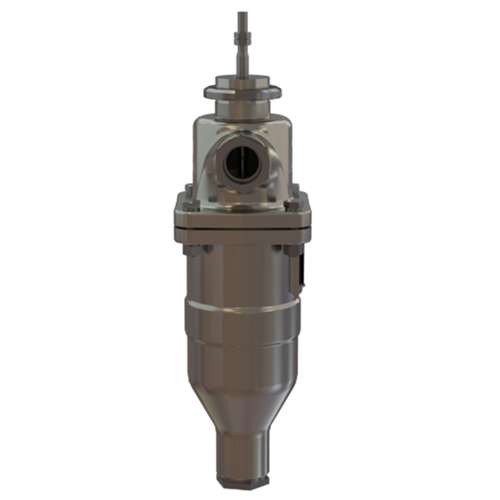

The EZ Heater® is the industry leader in all hot water applications with its unique internal modulation, and self-cleaning ability. With on-demand hot water where you need it, the EZ Heater is ideal for washing stations, Clean in Place (CIP) systems, and anywhere reliable hot water is needed.
Pressure & Temperature
- Max pressure – 195 PSIG / 13.4 Barg
- Max temperature – 400°F / 204°C
Connection Types
- H310 – H320: NPT
- H330 – H360: Flanged, ANSI Class 150#
- Simple internal design allows for an uninterrupted heating cycle
- Safety-focused operations utilize a steam shut-off valve to ensure safe steam conditions
- Plug and play capabilities allow for direct connections to existing piping
- Exceptional Energy Savings over heat exchangers
- Precise temperature control (+/- 1 degree) helps you reach and hold your desired set point
- On-demand heating so you never run out of hot water, wherever you need it
- Worry-free operation eliminates frequent maintenance downtime/production failures
- Self-cleaning design minimizes hard water scaling and fouling
- General Water Heating
- Central Hot Water Systems
- CIP/Washdown
- Hose Stations (140°F or 180°F water)
- Spray Bar Tempered Water
- Jacketed Reactor Heating
- Tank Heating & Washing
- Beverage
- Dairy (Separation & Pasteurization)
- Food
- Wastewater
- Chemical
- Pharmaceuticals (Personal Care & Bio Tech
- Energy & Utilities (Oil & Gas)
- Meat & Rendering
- Distilling & Brewing
- Starch to Sugar
- Paper & Pulp
- Renewable Fuel (Ethanol)
Other
- Mining (Processing Facilities)
- Metal
- Automotive
Sizing & Process Parameters
| H310 | H320 | H330 | H340 | H360 | |
| Steam Inlet (in./mm.) | 1.0 25.4 | 2.0 50.8 | 3.0 76.2 | 4.0 101.6 | 4.0 101.6 |
|---|---|---|---|---|---|
| Process Inlet (in./mm.) | 1.0 25.4 | 2.0 50.8 | 3.0 76.2 | 4.0 101.6 | 6.0 152.4 |
| Process Outlet (in./mm.) | 1.0 25.4 | 2.0 50.8 | 3.0 76.2 | 4.0 101.6 | 6.0 152.4 |
| Min. Flow (GPM/m3/hr) | 2 0.5 | 10 2.3 | 22 6.0 | 40 9.1 | 40 9.1 |
| Max. Flow (GPM/m3/hr) | 35 7.9 | 160 34.1 | 330 75.0 | 600 136.3 | 1,000 227.1 |
| Weight (lbs./kg) | 17.0 7.7 | 27.0 12.1 | 151.0 68.5 | 210.0 95.3 | 233.0 105.7 |
Larger sizes are available upon request – contact the Hydro Thermal team for more information.
