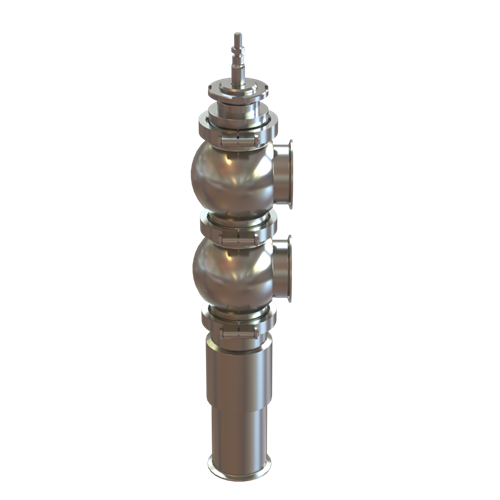

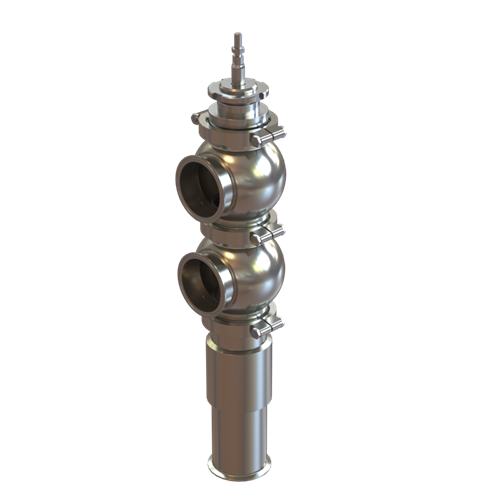

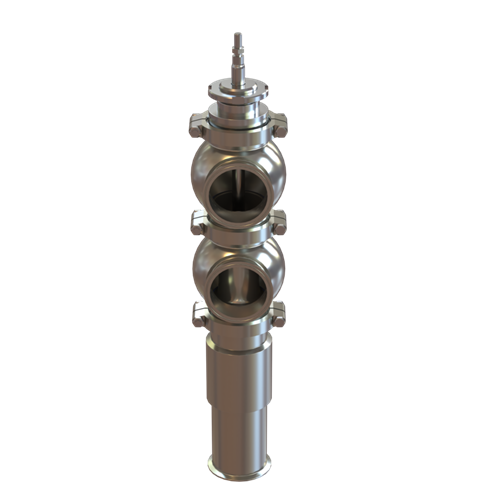

Hydron™ Sanitary Hydroheater
Hydron™ Sanitary Hydroheater
The Hydron™ 400 Series is the most precise, accurate, and versatile Sanitary Hydroheater available. Its modular 3-A certified design delivers optimal process flexibility and stability in an easy-to-use and maintain package.
Pressure & Temperature
- Max pressure 195 PSIG / 13.4 Barg
- Max temperature 400°F / 204°C
Electricity Usage
- Hydron servo motor (1)
– Less than 1 KW (2 HP)
Connection Types
- Tri-clamp
- I-Line (Extended Lead Time)
- ASME BPE Tri-Clamp
- Other custom sanitary connections available
Materials Of Construction
- 316L – Standard
- AL-6XN – Corrosive applications
Actuation
- Pneumatic steam control actuator with fail close
- Electric drive for shear/stability control
- Manual CTA option included and always upgradeable
- Operating stability across a full range of process conditions
- Precise temperature control within +/- 1 degree
- Scalable design to allow for future adjustments
- Self-cleaning design eliminates scale build-up and product fouling
- Automatic, Manual, and Fixed combining tube designs to help optimize process conditions
- Reduce energy costs through operational efficiency
- Adjustable controls for mixing and/or shear
- Certified sanitary design
- Precise temperature control
- Scalable design and components
- Starch cooking
- Clean-in-Place
- Pasteurization
- Tomato paste heating
- Baby food cooking
- Applesauce heating
- In-line cooking
- Soup-base cooking
- Pharmaceutical
- Cosmetics
- Adjunct mashes (Corn, Rice, Unmalted barley, etc.)
- Standard brewers malt mashes (Up to 35% dry solids)
- Baby formula
- Dairy products
- Whey permeate
- Ingredient water
- Inline cooking (meat slurries, soup-base)
- Product/ingredient sterilization
- Starch cooking (gravy, cream corn)
- Adjunct mashes (corn, rice, unmalted barley, etc.)
- Standard brewers malt mashes (up to 25% dry solids)
- Beverage
- Dairy (Separation & Pasteurization)
- Food
- Pharmaceuticals (Personal Care & Bio Tech)
Sizing & Process Parameters
| A410 | A415 | A420 | A425 | A430 | A440 | |
| Steam Inlet (in./mm.) | 1.0 25.4 | 1.5 38.1 | 2.0 50.8 | 2.5 63.5 | 3.0 76.2 | 4.0 101.6 |
|---|---|---|---|---|---|---|
| Process Inlet (in./mm.) | 1.0 25.4 | 1.5 38.1 | 1.5 38.1 | 2.5 63.5 | 2.5 63.5 | 4.0 101.6 |
| Outlet (in./mm.) | 1.0 25.4 | 1.5 38.1 | 1.5 38.1 | 2.5 63.5 | 2.5 63.5 | 4.0 101.6 |
| Min. Flow (GPM/m3/hr) | 1.0 0.2 | 9.0 2.0 | 30.0 6.8 | 40.0 91 | 60.0 13.6 | 90.0 20.4 |
| Max. Flow (GPM/m3/hr) | 27.0 6.1 | 60.0 13.6 | 60.0 13.6 | 200.0 45.4 | 200.0 45.4 | 460.0 104.5 |
| Weight (lbs./kg) | 60 27 | 69 31 | 69 31 | 96 44 | 96 44 | 130 59 |
Larger sizes are available upon request – contact the Hydro Thermal team for more information.
